Federal XM1001A 180gr TC JHP Pull-Down 3-31-2016

[The_Shadow]

Cartridge is from Ammo Manufacture: Federal XM1001A 180gr TC JHP (provided by 4949shoother 3/31/2016)
Ballistics Information: 10mm Auto
Muzzle Velocity: 1030 fps
Muzzle Energy: 424 ft. lbs
Brass Make/Headstamp: Federal FC - Brass
Bullet Make/Weight/Construction/Info; Length 0.6300"/Dia. 0.4000": 180gr TC JHP

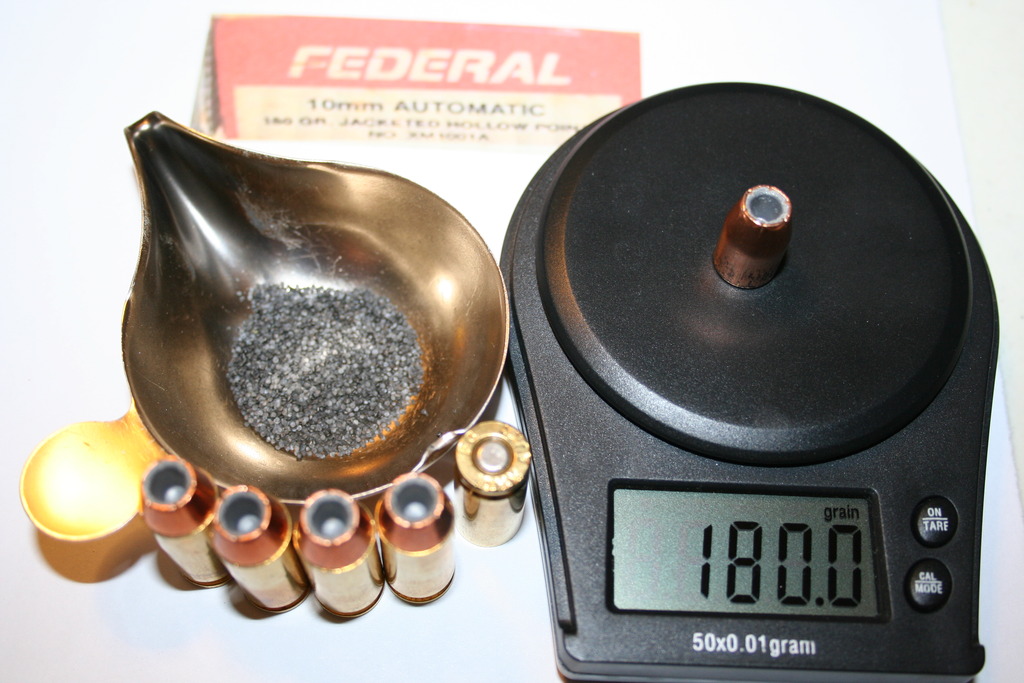

Actual weigh 180.0 grains  Crimp Diameter 0.4000"  (has black sealant)
HP depth  HP 0.2340" / HP dia. 0.1700" (tapered inside) flat base / mouth 0.2880"
C.O.A.L.: 1.2495 / 1.2500" / 1.2500" / 1.2500" /1.2525"

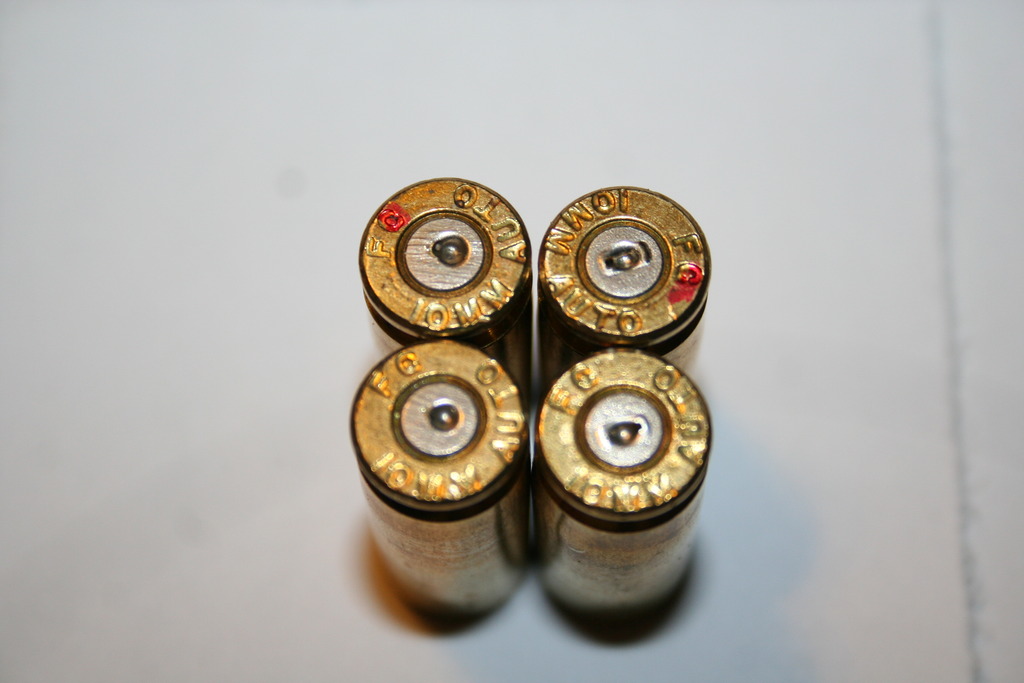

Primer: Large Pistol Nickel color
Case: Diameter 0.4215" Crimp Diameter 0.4220" / 0.4250" (light crimp) Length 0.9885"

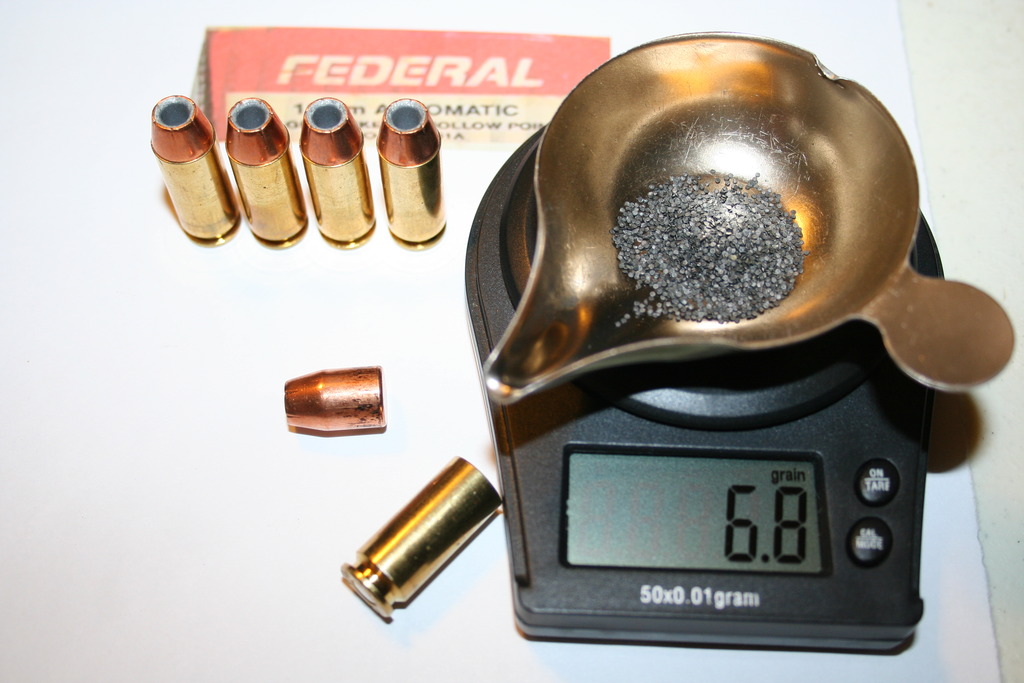

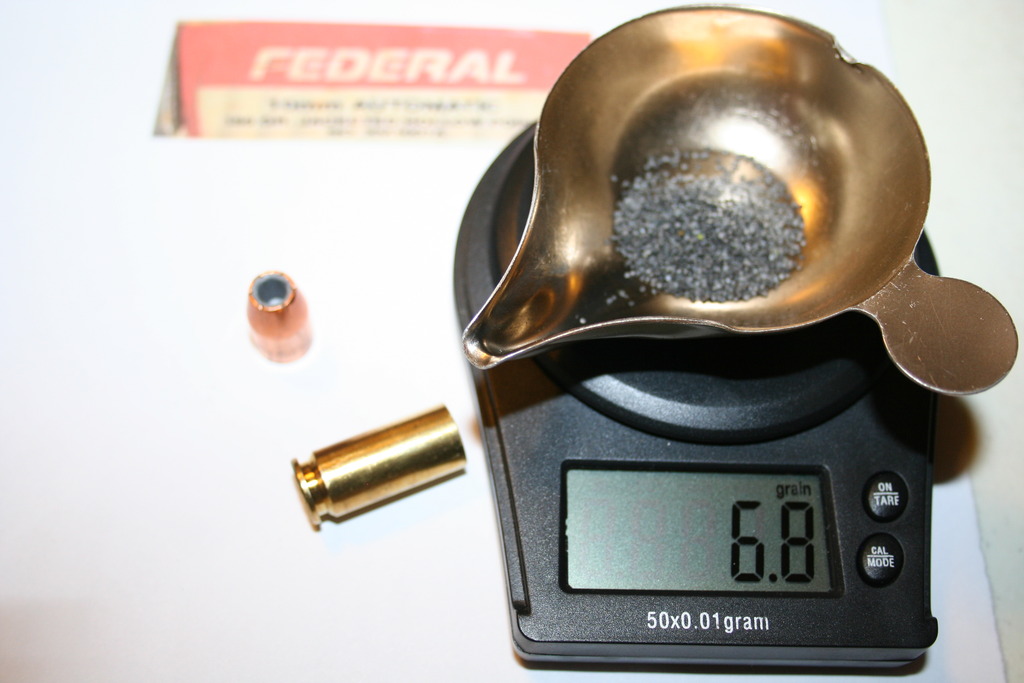

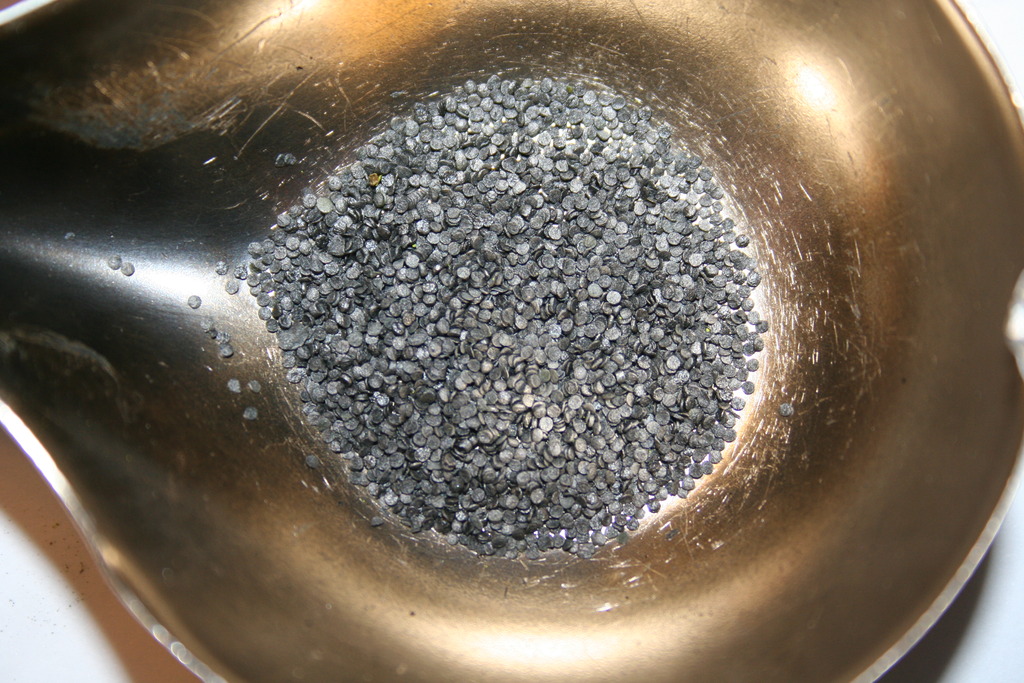

Powder Description/Positive ID/Type/Charge Weight: Power Pistol 6.8 grains











Test Data added today...  4/2/2016  Federal brass primer slightly flattened
Tested from the S&W 1006  (pulled and reloaded) 1044 FPS (factory) 1055 FPS Case expansion 0.4270"  Factory 5.0" BBL
Tested from the Glock 20SF (pulled and reloaded) 1034 FPS (factory) 1039 FPS Case expansion 0.4315"  Factory 4.6" BBL

[The_Shadow]

These matched up to the civilian loading Intercooler sent Federal (10C)

http://10mm-firearms.com/factory-10mm-ammo-pull-downs/federal-hi-shok-180gr-jhp-(10c)/

[4949shooter]

Thanks Shadow. I should have sent you the box top!

Interesting how they match the other load with different product numbers.

[DM1906]

Thanks Shadow. I should have sent you the box top!

Interesting how they match the other load with different product numbers.

They are similar, but not the same. Different bullets, different powder charges, and I haven't seen many (C)'s with sealant. Also, the XM# often indicates a bulk/government stock number. I've seen many XM boxes on retail shelves, but that doesn't rule out an original bulk/government order, or perhaps a surplus condition.

[4949shooter]

Kind of hard to tell from the pics but the bullets might be slightly different as you suggest.

[The_Shadow]

Test Data added today...  4/2/2016  Federal brass primer slightly flattened
Tested from the S&W 1006  (pulled and reloaded) 1044 FPS (factory) 1055 FPS Case expansion 0.4270"  Factory 5.0" BBL
Tested from the Glock 20SF (pulled and reloaded) 1034 FPS (factory) 1039 FPS Case expansion 0.4315"  Factory 4.6" BBL

[4949shooter]

Thanks for the update Shadow. I would have hoped for a bit more velocity, but what can we expect from a .gov load.
